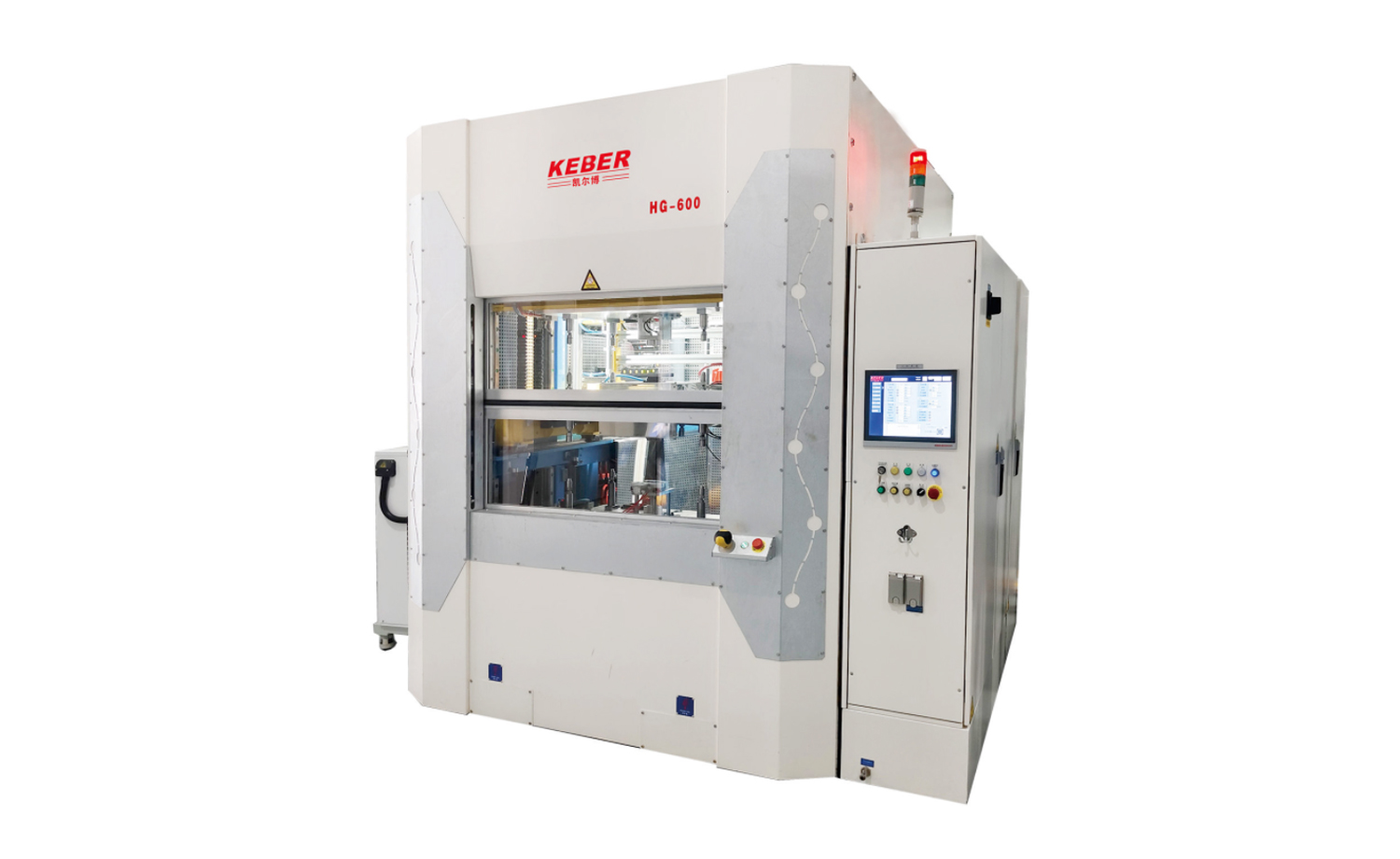

HG-600 welding Machine

HG welding has the characteristics of convenient use and simple operation, making it particularly suitable for welding plastic materials. This processing method involves passing compressed air(or inert gas)through a pipeline heater, heating it to the temperature required for welding plastic, and then using this preheated gas to heat the welding pieceand electrode to reach a molten state, thereby enabling welding to be combined under low pressure The traditional process is no longer suitable for the development needs of modern plastic industry, so some novel plastic processing technologies stand out with their advantages of high efficiency, high quality, aesthetics, and energy con-servation.

Equipment Functional Characteristics

High welding strength with water tightness and air tightness;
Welding does not produce smoke, pollution;

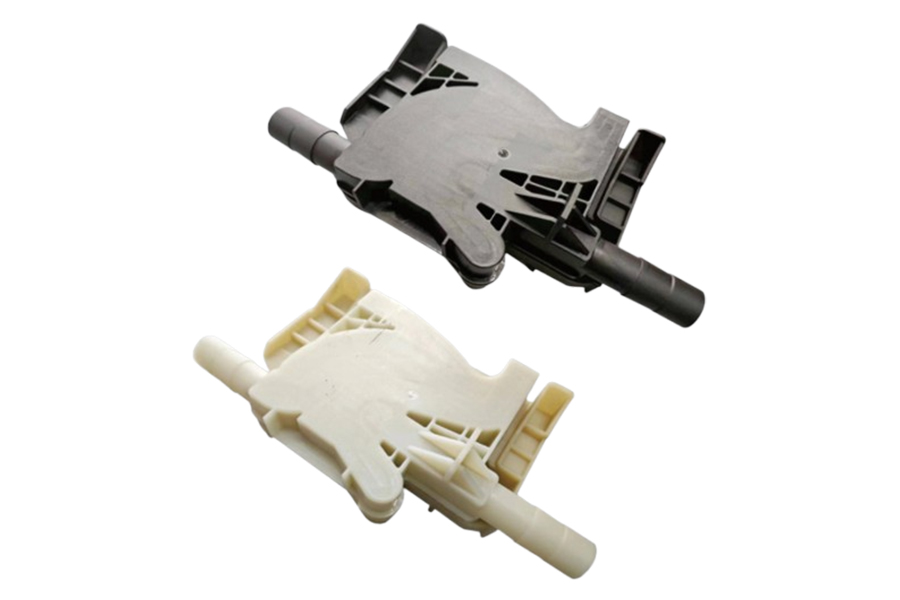

Suitable for large irregular welding thermoplastic parts;
Can effectively replace traditional screws, snaps, glue and other bonding process;
Can weld variety of plastic parts and materials, especially suitable for nylon and other softaterials with high-meltingmaterial.

Equipment parameters

Equipment parameters	Equipment parameters
Machine weight: 5000Kg	Electrical interface :3380V.50Hz.PE.N(5*16mm)
Machine Size:2800x2477x2773mm	Pneumatic interface :Ф12ncm
Driven type :Servo motor Precision gear drive	Tool interface:8 Port with HARTING Enthercat
Machine logic/internal communications: BECKOFF-KEBER logic control WIN7 System	Heating system : Heating 4
Clamping force control : Closed loop	Blowing quantity:20
Table control :Total travel Balluff(Enthercat)	Front door size(LxW):1290x995
Pneumatio Input air(bar): 6-10 bar	Back door size(HxW):1710x1260
Pneumatic type : FESTO	Vacuum :Vacuum oump 2-way circuit
Humidity(without condensation):30-90%	Table stroke:340-535mm
Altitude :max.1000m	Movement method:werical horizontal double servo motor
